智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster



CPC PLQ2系列电子应用液体冷却连接器、快速接头
CPC's PLQ2 Series liquid cooling of electronics

CPC PLQ2系列提供超可靠,无滴连接和断开,保护有价值的电子产品。CPC PLQ2连接器采用高性能热塑性塑料设计,重量轻,耐化学腐蚀,额定UL94 V0阻燃,使用方便,是电子应用的液体冷却的理想选择。这些创新的连接器提供高流量能力,以优化热管理系统性能。CPC PLQ2系列采用CPC开发的阀门技术,消除滴漏,设计成能够经受长期使用。The PLQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed using a high-performance thermoplastic, the PLQ2 connector is lightweight, chemical resistant, rated UL94 V0 flame retardant and easy to use—a perfect choice for liquid cooling of electronics applications. These innovative connectors offer a high-flow capacity to optimize thermal management system performance. The PLQ2 Series uses CPC-developed valve technology that eliminates drips and is designed to withstand long-term use.

PLQ2

The PLQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed using a high-performance thermoplastic, the PLQ2 connector is lightweight, chemical resistant, rated UL94 V0 flame retardant and easy to use—a perfect choice for liquid cooling of electronics applications. These innovative connectors offer a high-flow capacity to optimize thermal management system performance. The PLQ2 Series uses CPC-developed valve technology that eliminates drips and is designed to withstand long-term use.

CPC 高功能性塑料连接器——PLQ2系列video视频介绍



功能与效益
Features Benefits
High-performance thermoplastic material 高性能热塑性材料
Lightweight, durable and chemically compatible with widely used liquid cooling fluids 轻质、耐用,且与广泛使用的液体冷却液有良好的化学兼容性
Designed specifically for liquid cooling applications 专为液体冷却应用设计
Withstands continuous exposure to moisture with no risk of corrosion 可持续长时间暴露于潮湿环境,无腐蚀风险
Low pressure drop 压降低
Increases the efficiency of liquid cooling systems 提高液体冷却系统的冷却效率
Robust product testing to ensure reliability 强大的产品测试,确保可靠性
Proven dimensional stability, chemical compatibility and product tested to 10,000 cycles 经 10,000 次循环测试,尺寸稳定性、化学兼容性和产品性能均得到证实。
产品规格
Pressure Range:
Vacuum to 120 psi, 8.3 bar 压力: 真空至 120 psi,8.3 bar
Temperature Range:
0°F to 240°F (-17°C to 115°C) 温度: -17°C 至 115°C

Material: 材料:
Main housing components:
Polyphenysulfone 主体部分:聚苯砜
Valves and thumb latch:
Polyphenysulfone 聚苯砜
Valve spring (wetted):
Stainless steel 不锈钢
External spring:
Stainless steel 不锈钢
Seals:
EPDM

Color:
Matte Black with Cool Blue or Warm Red 配酷蓝或暖红

Tubing Sizes:
1/4" ID (6.4mm ID)
1/8" ID (3.2mm ID)
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of Colder products in their own application conditions. 警告: 压力、温度、化学品和工作环境可影响接头的性能。测试 CPC 产品是否适宜其应用环境属于客户责任。

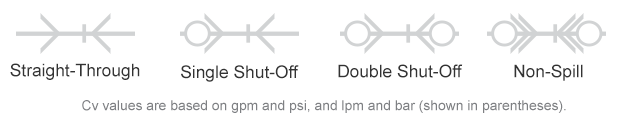

Cv值


non-spill







产品 Bodies母头

PLQ2D1704LBLU

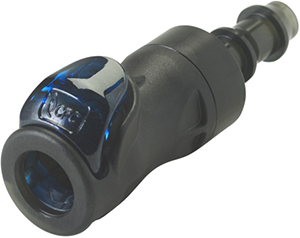

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue

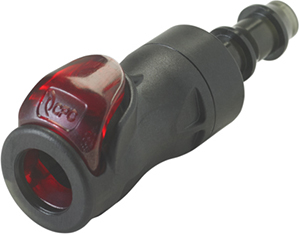

PLQ2D1704LRED

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red
PLQ2D3004BLU

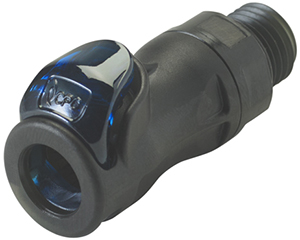

1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Cool Blue
PLQ2D3004RED

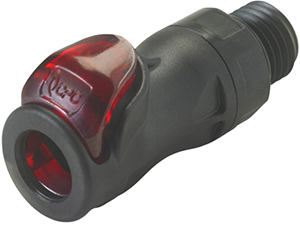

1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Warm Red
PLQ2D3102BLU

1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Cool Blue

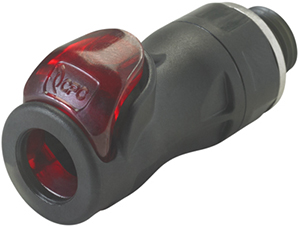

PLQ2D3102RED

1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red
PLQ2D3304LBLU

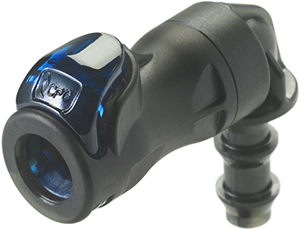

1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Cool Blue

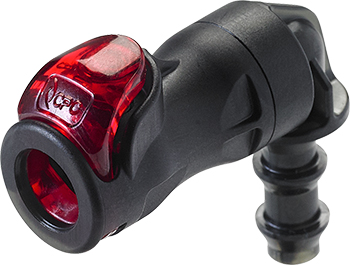

PLQ2D3304LRED

1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Warm Red



Inserts公头

PLQ2D2204LBLU

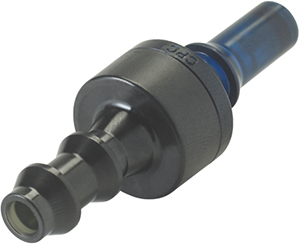

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue
PLQ2D2204LRED

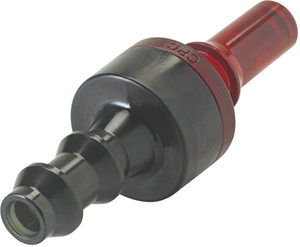

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red
PLQ2D2304LBLU

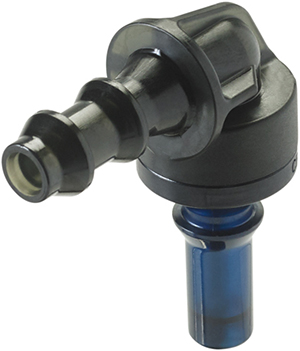

1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Cool Blue

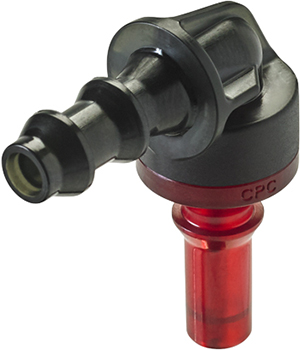

PLQ2D2304LRED

1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Warm Red

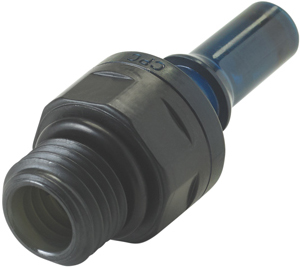

PLQ2D4604BLU

1/4" SAE Valved Liquid Cooling Coupling Insert, Cool Blue

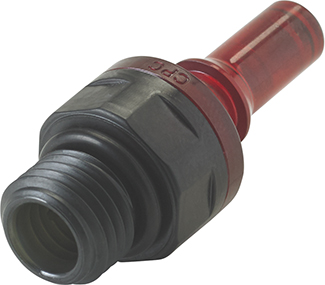

PLQ2D4604RED

1/4" SAE Valved Liquid Cooling Coupling Insert, Warm Red
PLQ2D4702BLU

1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Cool Blue
PLQ2D4702RED

1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Warm Red





产品 Bodies母头

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue
PLQ2D1704LBLU
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red
PLQ2D1704LRED
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red

1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Cool Blue
PLQ2D3004BLU
1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Cool Blue

1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Warm Red
PLQ2D3004RED
1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Warm Red
1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Cool Blue
PLQ2D3102BLU
1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Cool Blue

1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red
PLQ2D3102RED
1/8" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red

1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Cool Blue
PLQ2D3304LBLU
1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Cool Blue

1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Warm Red
PLQ2D3304LRED
1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Warm Red


Inserts公头


1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue
PLQ2D2204LBLU
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red
PLQ2D2204LRED
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red

1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Cool Blue
PLQ2D2304LBLU
1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Cool Blue

1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Warm Red
PLQ2D2304LRED
1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Warm Red
1/4" SAE Valved Liquid Cooling Coupling Insert, Cool Blue
PLQ2D4604BLU
1/4" SAE Valved Liquid Cooling Coupling Insert, Cool Blue

1/4" SAE Valved Liquid Cooling Coupling Insert, Warm Red
PLQ2D4604RED
1/4" SAE Valved Liquid Cooling Coupling Insert, Warm Red

1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Cool Blue
PLQ2D4702BLU
1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Cool Blue

1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Warm Red
PLQ2D4702RED
1/8" G-Thread/BSPP Valved Liquid Cooling Connector Insert, Warm Red







The future of liquid cooling QDs is here
液体冷却的未来在这里

PLQ in Liquid Cooling PLQ系列液体冷却

At CPC, we’re always looking for the next big thing for liquid cooling of electronics. Our latest innovation is the PLQ2—a quick disconnect (QD) made from high-performance thermoplastic. (By the way, we’re also proud of our LQ series of metal connectors.) These QDs deliver new capabilities for high-performance liquid cooling applications such as power inverters, broadcast services, transportation, and more.在CPC,我们一直在寻找下一件电子产品液态冷却的大事。我们新的创新是PLQ2-一种由高性能热塑性塑料制成的快速断开(QD)。(顺便说一下,我们也为我们的LQ系列金属连接器感到自豪。)这些QD为高性能液体冷却应用提供了新的能力,如功率逆变器、广播服务、运输等等。

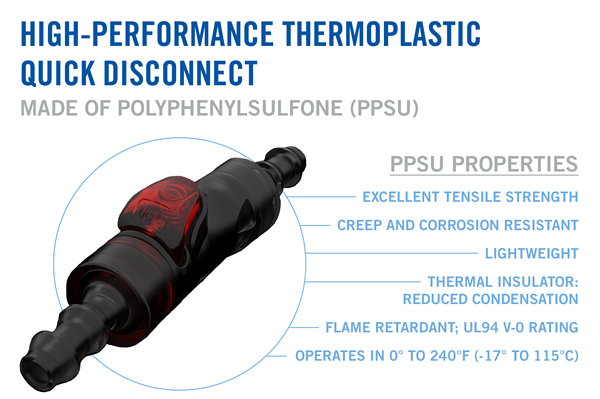

CPC unveiled the new thermoplastic connector for liquid cooling of electronics at SC18 in Dallas on Nov. 13. Made of polyphenylsulfone (PPSU), the PLQ2 connectors offer a heat-deflection temperature of more than 200°C and are chemically compatible with all of today’s most widely used coolants and engineered fluids. The new connectors eliminate concerns around plastic QD durability and performance, allowing product specifiers and operators to use these plastic QDs with complete confidence. 11月13日,CPC在达拉斯的SC18大会上公布了用于电子器件液态冷却的新型热塑性连接器。PLQ2连接器由聚苯砜(PPSU)制成,热偏转温度超过200℃,并且与当今所有广泛使用的冷却剂和工程流体在化学上兼容。新的连接器消除了塑料QD的耐用性和性能的顾虑,允许产品说明书和运营商完全有信心地使用这些塑料QD。

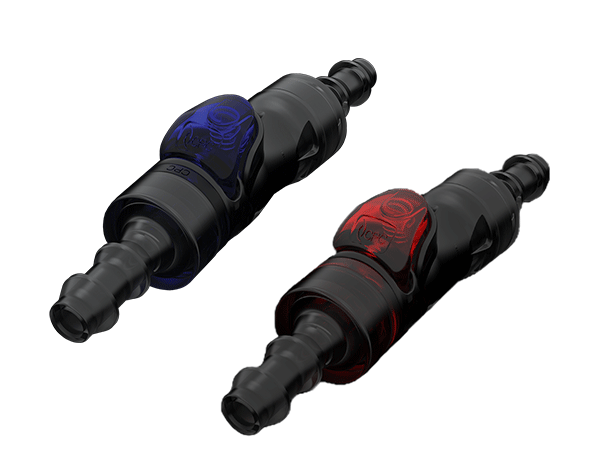

PLQ2 series系列电子应用产品

Until now, users seeking the lightweight and corrosion-resistant benefits of plastic QDs typically sacrificed some level of robustness. With the PLQ Series, that tradeoff is no longer necessary. The PLQ Series’ advanced polymer construction maintains excellent thermo-oxidative stability and long-term material performance over time. The PLQ QDs operate in temperatures from 0°F to 240°F (-17°–115°C). Dimensionally stable PPSU has low water absorption, making the PLQ QDs ideal for water-cooled systems and humid environments. As a thermal insulator, PPSU reduces potential condensation on the connector and eases handling—the QD will not be hot to the touch when warm fluid is present. The PPSU connector is inherently flame retardant with a UL94 V-0 rating. 到目前为止,寻求塑料QD的轻量级和耐腐蚀优点的用户通常牺牲了某种程度的健壮性。随着PLQ系列,这种折衷不再是必要的。PLQ系列先进聚合物结构长期保持优异的热氧化稳定性和长期材料性能。PLQ量子点在0°F到240°F(-17°-115°C)的温度下工作。尺寸稳定的PPSU具有低吸水性,使得PLQ量子点非常适合水冷系统和潮湿环境。作为绝热体,PPSU减少了连接器上的潜在冷凝并简化了操作——当有热流体存在时,QD不会热到触摸。PPSU连接器本质上是具有UL94 V-0额定值的阻燃剂。

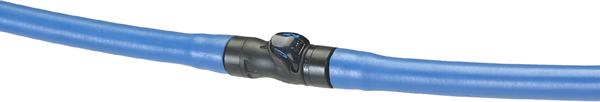

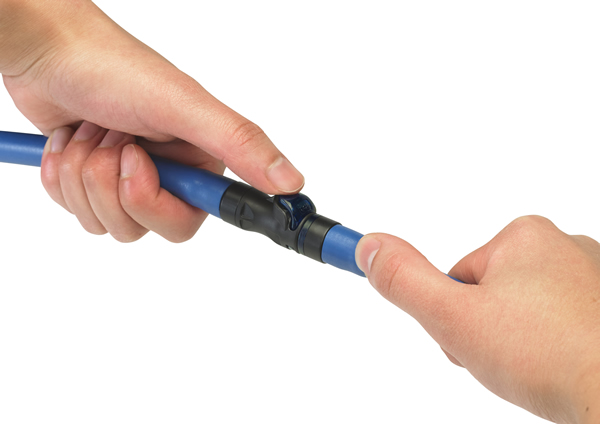

PlQ2 connected

The PLQ2 connector has undergone more than 10,000 cycles of leak testing as well as fluid burst pressure, creep resistance testing and more. CPC’s extensive manufacturing validation process also includes both 100 percent function and leak testing during production.PLQ2连接器已经经历了10000多次的泄漏测试以及流体破裂压力、蠕变阻力测试和更多的周期。CPC广泛的制造验证过程还包括100%的功能和生产过程中的泄漏测试。




PLQ2系列



The new PLQ2 Series begins shipping in December 2018. For more information about the performance and versatility of the PLQ Series, visit Channel Tools/New Products and cpcworldwide.com/PLQ2. 新的PLQ2系列开始在2018年12月发货。有关PLQ系列的性能和通用性的更多信息,请访问Channel Tools/New Products和cpcworld..com/PLQ2。
