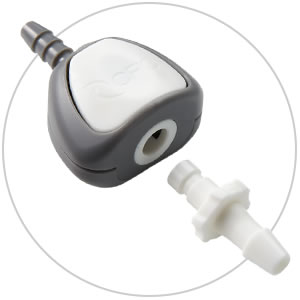

BCF Bayonet Body

The BCF Bayonet Body fitting connects tubing between a blood pressure cuff and a new or existing blood pressure monitor. Made of ABS thermoplastic, the BCF Bayonet female fitting fits tubing from 1/8” to 5/32” (3.2 mm to 4.0 mm.) The BCF Series is compatible with ISO 80369-5 compliant FitQuik Bayonet fittings and standard blood pressure male fittings used with many existing monitoring systems.

Click here for additional technical information.

Downloads
Read the press release.

Click here for Frequently Asked Questions.

Spec sheet PDF.

High Resolution Photos from Marketing Photo Library.

BCF Series, designed for blood pressure monitoring devices, is a small bore, bayonet-style female connector with leak-free performance. Featuring a quick disconnect thumb latch, the single-hand operation of the BCF Series makes it the choice for fast and easy connections between blood pressure cuff and machine. Made primarily from ABS thermoplastic, the BCF Series provides an easier to use alternative to metal connector options. The BCF Series is compatible with IS0 80369-5 compliant FitQuik? Bayonet Fittings and standard blood pressure male fittings available in the market.

Avoid Misconnections with New CPC BP Monitor Connector
Designed with ISO 80369 Standards in Mind

St. Paul, Minn. – June 14, 2016 – CPC (Colder Products Company), the leading provider of quick disconnectcouplings and fittings for plastic tubing, introduces the BCF Series Bayonet Body couplings. The new bayonetcoupling connects tubing between a blood pressure cuff and a blood pressure monitor.

“For patient safety reasons, connectors should work specifically with an intended device,” says Jim Brown,business unit manager, medical and industrial markets, and a U.S. expert on the ISO Small-Bore ConnectorsCommittee since 2002. “The ISO 80369 small-bore connector standard defines connectors to help busy healthcare professionals prevent misconnections with the many devices they use every day. We designed the BCF Series with that concept in mind—as a connector solution created for use with new or existing systems using bayonet-style inserts.”

The widespread use of standard luers that work with multiple devices led to the ISO initiative. Patient injuries and deaths have occurred due to medical misconnections. In contrast, when specific connectors are used for a particular application, it lessens or prevents the chance of misconnection. The BCF Series female connectors offer leak-free performance. A simple-to-use thumb latch enables quick connections and disconnections with one hand. An audible click confirms a secure connection. The coupling’s main body is made of ABS thermoplastic and it fits tubing Hi-res photos available here.
Colder Products Company
Bayonet Body Connectors—Page 2

sizes from 1/8” to 5/32" (3.2 mm and 4.0 mm). The BCF Series is compatible with IS0 80369-5-compliant FitQuik? Bayonet Fittings and standard blood pressure male fittings used with many existing monitoring systems.

For more information about the BCF Series or any of the other 10,000+ innovative connection solutions CPC offers, visit cpcworldwide.com.

About CPC

CPC (Colder Products Company) is the leading provider of quick disconnect couplings, fittings and connectors for the life sciences, bioprocessing, industrial and chemical handling markets. CPC is an operating company within Dover Corporation. For a free catalog or more information, contact: Colder Products Company, 1001 Westgate Drive, St. Paul,MN 55114. Phone: 651-645-0091. Toll-free: 800-444-2474. Fax: 651-645-5404. Web: cpcworldwide.com
FitQuik, CPC, Colder Products, Colder Products Company and Dover are registered trademarks with the U.S. Patent & Trademark office.
