原装进口美国Snap-tite拉断阀
NGVBCN2-P50NR拉断阀
Compressed Natural Gas (CNG) Inline Hose Breakaway
NGVBCN2-P50
CNG拉断阀 LNG拉断阀 安全拉断阀-CNG拉断阀-拉断阀-加气站拉断阀-安全拉断阀-天然气拉断阀-LNG拉断阀产品
阀门有：法兰和内螺纹两种连接方式.内螺纹又为3/8和1/2长用.适用于CNG槽车卸车软管系统，CNG拉断阀 LNG拉断阀 安全拉断阀 加气站拉断阀
天然气拉断阀可重复拉断复位使用

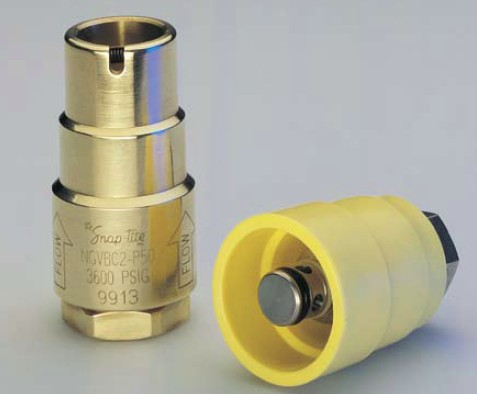

NGVBCN2-P50NR拉断阀
CNG拉断阀型号B049-21
拉断阀NGVBCN2-P50,NGVBCN2-P50NR
加气枪 NGVC2-P36
快换接头 71-3C16-16F
快换接头 71-3N16-16F
Snap-tite CNG快速接头 SNAP-TITE 72C16-16F and 72N16-16F
美国snap-tite液压快速接头
工作压力：3600 Psi;
加注流量：5400 Nm3/hr ;
拉断力：266.9 ～622.7 N;
连接尺寸：3/8SAE 1/2SAE；
材质：不锈钢
标准：NGV1
用途：CNG加气机
拉断阀拉断力：400～600N（安全拉断，并关断气源）
Corrosive resistant stainless steel
(303 & 316) construction
- Nipple is equipped with durable polyethylene
bumper to protect the nipple form in the event of a
breakaway
- Disconnect force: 60-140 lbs. (266.9 – 622.7 N) at
any pressure up to operating
- Superior flo- characteristics
- Compact envelope
- Balanced design assures positive connection until
a breakaway cycle is required
- Lightweight design - .95 lbs. (.431 kgs)
- Easy installation
- Reusable following breakaway with minimal repair
Working Pressure: 3600 psi (248 bar)
Burst Pressure: 20,000 psi (1379 bar)
Temperature Range: –40°F (–40°C) to
150°F (66°C)
Weight: .95 lbs (.431 kgs)
Flo- Rate: 2090 SCFM (3551 Nm3/hr)
Material: 303 & 316 Stainless Steel
| Series |
NGV Series |
| Connection Size |
3/8" Female SAE x 3/8" Female SAE Inline Hose Breakaway (non-relieving)
|
| Seal Material |
Polyurethane Crimped |
| Classification |
Natural Gas Vehicle Fueling |
Snap-Tite's receptacles and patented nozzles fully comply with and are certified to the AGA/CGA NGV1 Standard for Compressed Natural Gas Vehicles (NGV) fueling connection devices.
|
